DONCHAMP®️ NoiseGuard FSR (Filament Shard Retention)
– Acoustic/Wind Barriers
DONCHAMP® NoiseGuard FSR cast acrylic is a specially designed & developed acrylic grade, which is highly weather resistant (30-year Clear limited manufacturer’s warranty), excellent clarity & optical properties, exceptional mechanical properties & rigidity, simple to fabricate (cut, bend & polish), whilst reducing the environmental noise pollution levels & hazardous high winds from roads, highways, bridges & rails. The added advantage & point of difference with DONCHAMP® NoiseGuard FSR is:• Fragment retention system safety for travelling public on bridges & overpasses.
• Built-in lines to protect bird strikes – lines visible to protect the native birdlife.
DONCHAMP® NoiseGuard FSR is a high optical transparent grade of cast acrylic with embedded (nylon) polyamide rods. In the event of a motor vehicle collision with a barrier, the DONCHAMP® NoiseGuard FSR rods retain the fragments, preventing them from falling.
Advantages
The added advantage & point of difference with DONCHAMP® NoiseGuard FSR is:
• Fragment retention system safety for travelling public on bridges & overpasses.
• Built-in lines to protect bird strikes – lines visible to protect the native birdlife.
DONCHAMP® NoiseGuard FSR is a high optical transparent grade of cast acrylic with embedded
(nylon) polyamide rods. In the event of a motor vehicle collision with a barrier, the DONCHAMP®
NoiseGuard FSR rods retain the fragments, preventing them from falling.
● Easy to clean & maintain.
● Superior optical properties.
● Excellent noise reflection values.
● High rigidity.
● Dimensionally stability.
● Exceptional UV stability (manufacturers guarantees available).
● Lightweight.
Properties
● Specially formulated, with filament protection embedment.● Shatter resistant with the addition of our IP developed filament embedment.
● Fragment shard retention system further enabling safety for the travelling public.
● Built-in visible lines to protect bird strikes, ensuring the safety of the native birdlife.
● 30 Year clear manufacturer’s limited UV warranty against yellowing & discoloration.
● Certified by MFPA Leipzig to European standard (EN1793, EN 1794) & ZTV-LSW 06.
● Architectural glazing – Roofing & cladding/ windows
● Excellent light transmission & optical clarity.
● Superior finish (no manufacturing lines, distortions, refractions & inclusions).
● High surface hardness (as opposed to other plastic polymers)
● Approx. eleven times more break resistant than glass.
● Light weight (approx. half the weight of glass).
● 100% recyclable product.
● Available in a range of contemporary design colours.
● The removal of light surface scratches is achievable by a simple polishing process.
● Unique & excellent safety benefits for high traffic & high wind areas.
Options
Grades Available:● DONCHAMP® NoiseGuard FSR Gloss Clear & transparent colours.
● DONCHAMP® NoiseGuard FSR Velvet (Satin finish 1 or 2 sides)
● DONCHAMP® NoiseGuard FSR ST (Solid/Opaque – gloss or satin finish)
Colour Availability:
● Clear / transparent - tints / translucent & opaque colours.
Filament Colours:
● Black, Clear/Natural
Current Surface Finish:
● Gloss
● Velvet satin finishes
Std. Dimensions/panel sizes:
● 2000mm x 3000mm
● 2000mm x 4000mm
● 2000mm x 5000mm
● 2300mm x 4000mm
Standard thicknesses:
● 12.0mm, 15.0mm, 18.0mm, 20.0mm and 25.0mm
Masking:
● Pressure Sensitive PE Film
See full table of color options and grades
Learn More

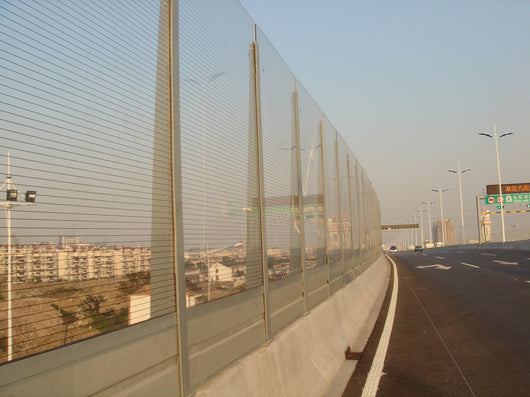

The combination of both the functional and visual attractions, makes DONCHAMP® NoiseGuard
panels an excellent choice for acoustic / wind barrier applications on highways, bridges, and
railways. The transparency of the panels opens the landscape for the road/rail user, whilst offering
sound control and protection to the public (both residents and road users). Transporting
DONCHAMP® NoiseGuard is simple, having approx. eleven times the break resistance of glass &
lower weight. Any light surface marks on DONCHAMP® NoiseGuard can be polished & marks
removed.
