DONCHAMP® Splash


Infinite Possibilities– not just cast acrylic sheet


DONCHAMP® Splash acrylic block aquatic viewing panels:

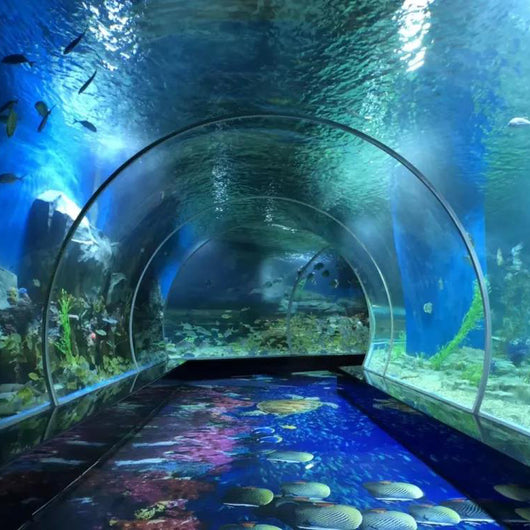

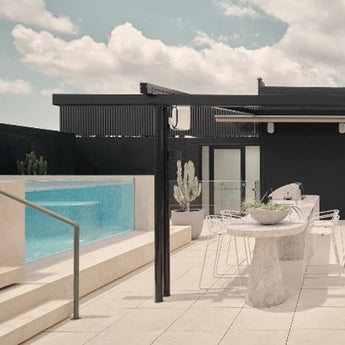

There is a global trend in swimming pool design to create new viewing environments, enabling a unique viewing experience, realized through innovative design parameters, by incorporating DONCHAMP® Splash acrylic view panels. Through years of project experience, DONCHAMP® Splash offers new possibilities in the supply of long standing & cosmetically pleasing viewing panels.

DONCHAMP® Splash cast acrylic block provides expert services including thermoforming, edge & surface polishing, bonding (In house & onsite), as well as the annealing processes, to produce solutions in transparent viewing windows. DONCHAMP through our uniquely developed IP, offers the highest quality acrylic viewing window, with one of the largest global dimensions available of: (30 feet 6.1 inches - 9300mm X 10 feet 2 inches - 3100mm. DONCHAMP also offers our highly regarded installation services, whether it be large public aquariums or complex design resort swimming pools.

Features


PVHO-1 (Pressure Vessel Human Occupancy) 2019 certification by DNV-GL.
DONCHAMP® Splash: 30-year UV guarantee.
Panel size availability ranging up to currently 9300mm x 3100mm.
Specially developed bonding technology enabling further lengths.
Thickness range (over 750mm - 2 feet 5.5 inches)
Expert thermo-forming, on site bonding & fabrication options available.
Leading optically clear quality.
Excellent surface hardness (scratch resistance).


Advantages

Excellent strength / high mechanical properties & surface hardness.
Easy to clean & maintain.
Superior optical properties (meeting ISO standards)
Engineered to 30-year design criteria.
High rigidity.
Dimensionally stability.
Exceptional UV stability (manufacturers guarantees available).
Light weight.
Temperature controlled, Dust-free fabrication facility
Large scale functional oven
Five axis CNC router.



Finished Products Available:

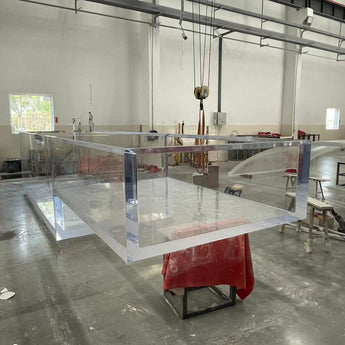

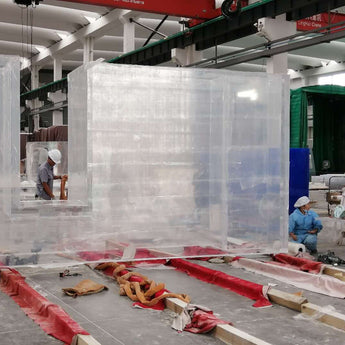

DONCHAMP® Splash tanks (Fabricated acrylic tanks)

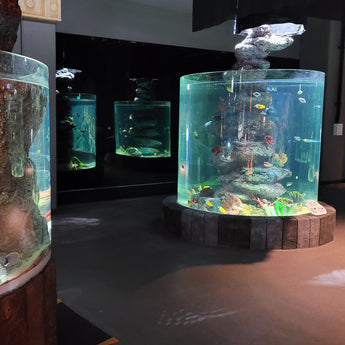

DONCHAMP® Splash Cylinders (Fabricated acrylic cylinders)


Specialty Properties & Capabilities - DONCHAMP® Splash:

Flat panels (available with saw cut & or polished edges).
Thermoforming & bending of curved panels.
Bonding (in house or on-site bonding).
Annealing.
Painted edge trim.
International installation.
Very high mechanical bonds & lamination, excellent cosmetic appearance.
30 Year manufacturer’s limited UV warranty against yellowing & discoloration.
Larger length capabilities: up to 93000mm length finished size, no joins.
Capabilities of up to 750.0mm & beyond.
Excellent light transmission & optical clarity.
Less than 1% content residual monomer, resulting from our raw material curing process
High levels of residual monomer creates discolouration in the UV.
Strict permissible level of inclusions/defects, highest optical level.
Approx. 11 times the break resistance as opposed to glass.
Easy to shape/thermoform into cosmetically pleasing curves.
Concept, technical design are all within our inhouse engineering capabilities.
Engineering services designed for best long term performance & appearance.
DONCHAMP’s deflection criteria is designed to exhibit no visible deflection, design life of 25-30 years.
Both In-house & on-site bonding capabilities (30 installers working globally).
Light weight (approx. half the weight of glass) & 100% recyclable product.
Light surface marks can be easily polished out.

See full table of color options and grades

Learn More



Specifications

Std. Dimensions/panel sizes:
9300mm x 3000mm
7800mm x 3000mm
7300mm x 3000mm
6800mm x 3000mm
9300mm x 3000mm
6300mm x 2800mm
6100mm x 2900mm
3000mm x 2000mm
5300mm x 2800mm
5020mm x 2200mm
4900mm x 2500mm
4800mm x 2900mm
3970mm x 1970mm
& 2440mm x 1220mm in lower thickness range.

Standard thicknesses:
30mm – 750mm (thinner gauges also available).

Masking:
Pressure Sensitive PE Film

See full table of color options and grades

Learn More

DONCHAMP® Splash


Infinite Possibilities– not just cast acrylic sheet

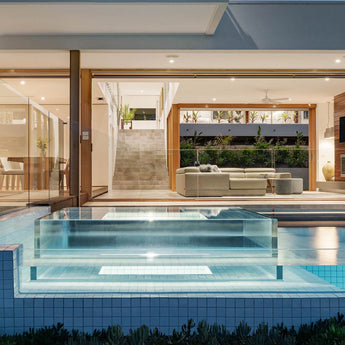

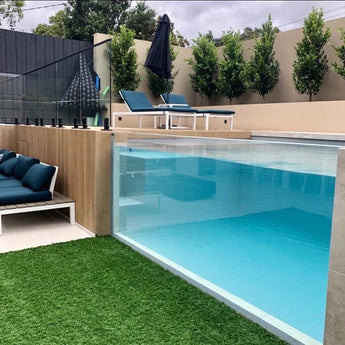

DONCHAMP produces the highest quality acrylic aquatic viewing windows, with the addition of leading on-site installation. The DONCHAMP® Splash aquatic product range features excellent stock availability, specially designed swimming pool viewing panels, 3 or 4 sides supported wall panel, portholes, stand out sparkling acrylic spas, architectural wet edges, as well as water fountains / features. DONCHAMP gained success with several high-profile architectural projects, where DONCHAMP® Splash products & services facilitate new design concepts.

DONCHAMP® Splash specially developed characteristics, enhance the performance in fabrication, enabling improved, cosmetic & mechanical results. The DONCHAMP® Splash developed polymerization process, creates optimum mechanical strength, further producing a superior surface hardness. Our in-house thermoforming & annealing capabilities, enable our DONCHAMP® Splash acrylic panel to be a superior option in aquatic glazing applications. As DONCHAMP is the long-established Asian leader, our offers are highly economical, coupled with an excellent stock availability & well-regarded fabrication.
