DONCHAMP® Lucent – Edge Lighting

Integrated LED Solutions – illuminating with innovation.

When incorporating the new DONCHAMP® Lucent acrylic products, bulky illuminated sign boxes & feature lighting is an issue of the past. With the further advancements of LED lighting, this has inspired & enabled the development of the new grades of DONCHAMP® Lucent acrylic, which compliments the performance of backlit LED lighting, offering a unique solution. The DONCHAMP® Lucent range offers superior illumination performance, allowing sign, display manufacturers & designers, greater benefits & advantages in incorporating LED lighting, enabling slim line design options which are highly energy efficient, cosmetically appealing & cost effective.

Advantages DONCHAMP® Lucent (0000DM & 0000LS) Edge Lighting:

● Excellent edge light performance grades available, with an extremely high level of lux.
●Two edge light options – laser etched or light dispersing pigmentation.
●Optimum LED edge light illumination.
●Long product life: 30-year UV guarantee on Clear.
●Good surface hardness (opposed to other plastic polymers).
●Low maintenance, energy efficient, no pin spotting/hot spots.
●Polish the illuminated edges, preferably buffed or diamond polished. Laser polished & or flame polished can create a low level of refraction.
●Seal all non-illuminated edges with a reflective silver or white tape, to capture the internal panel light.
●Use a white backing substrate on the laser etched side, to reflect the light.

Applications

Special features:
No requirement for further processing (printing or laser/router etching, ready & easy to use.

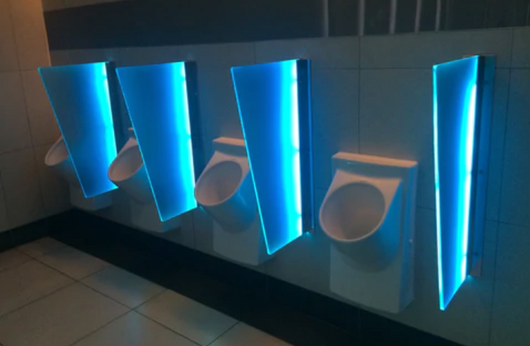

● Signage, feature screen / partitions, machine components, feature walls, lighting, shelves, displays POP, exit signs etc.

DONCHAMP® Lucent (0000LS) Edge Lighting:

DONCHAMP® Lucent (0000LS) is a cast acrylic panel utilising IP in the development of a transparent panel for edge-lit lighting, signage & display applications. DONCHAMP® Lucent (0000LS) has a high transparent appearance, in further offering a uniform & clear distribution of light when edge illuminated.

Options

Color rendering index (CRI): >80%
Uniformity of brightness: >80%
Light output efficiency: >75%
Raw material: 100% virgin Mitsubishi MMA monomer
Maxim lighting width: 1800mm
Life span: >8 years

LGPA (for advertising display) - Illumination width (Two sides edge illuminated)
Light Span / Thickness
0 - 900mm / 3 - 4mm
900 -1200mm / 6mm
1200 -1500mm / 8mm
1500 -1800mm / 10mm

LGPL (for LED panel lighting)
Lighting width / Model
0-300mm / LGPL-1 300-600mm / LGPL-2

DONCHAMP®️ Lucent – Edge Lighting

All the information provided within this document and any further related technical DONCHAMP® advice, is based on testing conducted & well-established industry knowledge. This information supplied is as a suggested reference only & it does not alter the obligation of the customer/end user to conduct their own inspection and testing of any products supplied by DONCHAMP®. DONCHAMP® suggests that the performance of the product/products referenced gain verification by the customers/end users individual testing, where DONCHAMP® suggests testing by an accredited testing authority, where this is the sole responsibility of the customer/end user. No warranty/guarantee is relating to the properties within this document, whether noted or otherwise implied. DONCHAMP® advises that we reserve the right to make any changes in accordance with new developments in technology. Any reference to trade names/trademarks has no endorsement by DONCHAMP® & any deemed suggested comparable products, has no approval by DONCHAMP® to in use in application. Please note the DONCHAMP® accepts no liability or any other legal responsibility, relating to any current third-party intellectual property & or patent rights.
